Al Cooling Block

Stable Temperature-Retention for Reagents

  • BIOFACT

    * 좌우로 스크롤하시면 확인가능합니다. * Scroll left & right

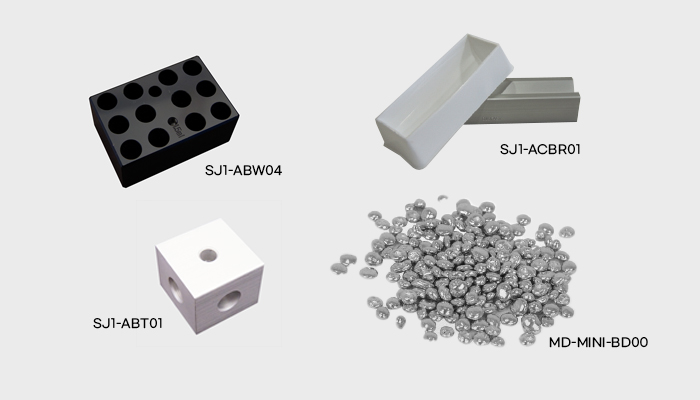

    Cat. No. Product Size
    SJ1-ACB01 Al Cooling Block A type(96 Well x 0.2 ㎖) 12 x 8.2 x 1.5 ㎝
    SJ1-ACB02 Al Cooling Block B type(12hole x 1.5 ㎖ / 96 Well x 0.2 ㎖) 12 x 12.2 x 3 ㎝
    SJ1-ACB03 Al Cooling Block C type(25hole x 1.5 ㎖ / 48 Well x 0.2 ㎖) 12 x 10.5 x 3 ㎝
    SJ1-ACB04 Al Cooling Block D type(40hole x 1.5 ㎖ / 96 Well x 0.2 ㎖) 12 x 16.5 x 3 ㎝
    SJ1-ACB05 Al Cooling Block E type(4hole x 2.0 ㎖ / 4hole x 1.5 ㎖ / 16 Well x 0.2 ㎖) 8.5 x 8.5 x 3 ㎝
    SJ1-ABW01L Al Block for water bath (48 Well x 0.2 ㎖ / 4hole x 1.5 ㎖_Left side ) 8 x 2.5 x 5 ㎝
    SJ1-ABW01R Al Block for water bath (48 Well x 0.2 ㎖ / 4hole x 1.5 ㎖_Right side ) 8 x 2.5 x 5 ㎝
    SJ1-ABW02 Al Block for water bath (20hole x 1.5 ㎖ ) 8 x 10.3 x 5 ㎝
    SJ1-ABW03 Al Block for water bath (11hole x 15 ㎖ ) 10.5 x 8 x 5 ㎝
    SJ1-ABW04 Al Block for Mini Heating Dry Bath(12hole x 1.5 ㎖ ) 7 x 4.5 x 3 ㎝
    SJ1-ACBR01 Al Cooling Block Reservoir Type (V형) 12 x 4 x 3 ㎝
    SJ1-ABT01 Al Block for thermometer ( each 1 hole in 5 faces ) 3 x 3 x 2.5 ㎝

  • Description

    AI Cooling Block is designed to store samples safely on the lab bench without sample degradation due to temperature increase or fluctuation. AI Cooling Block is made of 99% aluminum which has highest thermal conduction rate and it maintains temperature at approximately 0° C within 10 minutes when placing on the ice. Through simply placing the AI Cooling Block in a freezer for two hours, it is also ready for use and it can keep samples cool and safe at the bench without ice buckets.

    • Minimization of degradation due to temperature
    • Excellent corrosion resistance & low temperature strength
    • Usage with ice bucket / without ice bucket


    ■ How to use




    ■ Comparison of temperature changes according to the passage of time




    Tip.
    ① The temperature of AI Cooling Block can be down to minus degrees in case of storage at below -20 ℃ freezer.
    ② Please use ice (bucket) with AI Cooling Block in order to keep minus degrees of the Al Cooling Block for more than 30 minutes which was kept at below -20 ℃ freezer.
    ③ The temperature of AI Cooling Block doesn’t go down as fast as ice due to vaporization when using liquid nitrogen.
